Products Description

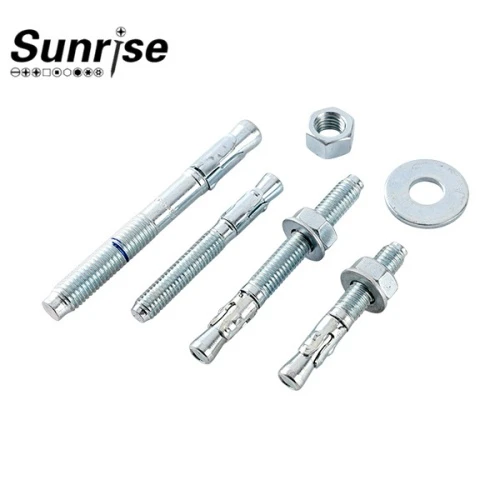

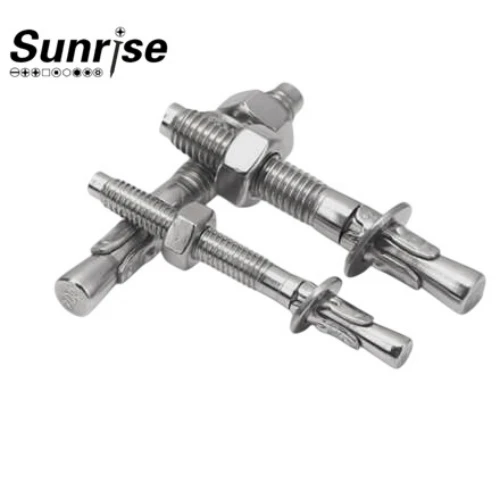

The Through Bolt Concrete Wedge Anchor is a high-performance fastening solution designed for heavy-duty applications in concrete and masonry. It provides a secure and reliable method for attaching a wide range of equipment and fixtures to solid concrete surfaces. This anchor features a wedge-shaped design that ensures a strong, tight grip within the concrete, offering superior holding power and resistance to pull-out forces. The through bolt design makes installation fast and simple, with the bolt passing completely through the fixture and the concrete to provide maximum engagement with the anchor.
Key Parameters:
Material: Carbon Steel, Stainless Steel
Size Range: M6 to M30 (other custom sizes available upon request)
Finish: Zinc-plated, Hot-dip galvanized, or Stainless Steel (depending on application requirements)
Load Capacity: From 500 to 5000 lbs (depending on anchor size and concrete strength)
Anchor Type: Through Bolt (Fully threaded)
Installation Method: Simple manual installation using a wrench, requiring no special tools
Temperature Range: Suitable for use in temperatures ranging from -40°C to 100°C
Approval Certifications: CE, ASTM, or other relevant standards depending on regional requirements
Products Process
Material Selection:The Through Bolt Concrete Wedge Anchors are typically made from carbon steel or stainless steel, depending on the application. The materials are chosen for their strength, durability, and corrosion resistance.
Forging:The steel material is heated and forged into the desired shape, ensuring the wedge's geometry is perfect for gripping and expanding within the concrete when the anchor is tightened.
Heat Treatment:To improve the mechanical properties of the anchor, including tensile strength and hardness, heat treatment is applied. This makes the anchor highly resistant to shear and tensile forces.
Surface Coating:The anchors are coated with a zinc plating or hot-dip galvanization to protect against corrosion, enhancing their durability and performance in various environments, including outdoor and wet conditions.
Assembly:The through bolt anchor is assembled, ensuring each component-bolt, wedge, and sleeve-fits perfectly. Quality control tests are performed to ensure all parts meet the required specifications.
Products Application
The Through Bolt Concrete Wedge Anchor is ideal for use in various applications, including:
Industrial Equipment Installation: Securing heavy machinery and equipment to concrete floors or walls.
Structural Fixings: Attaching steel beams, frames, or supports in construction projects.
Infrastructure Projects: Used in highways, bridges, and other infrastructure for attaching guardrails, posts, and safety barriers.
Anchoring Systems: Ideal for use in securing railings, signage, and other outdoor structures in areas exposed to harsh weather.
Maintenance and Retrofit Work: Can be used for fixing replacement parts or additions to existing concrete structures.
FAQ
Q1: What is the maximum load capacity of Through Bolt Concrete Wedge Anchors?
The load capacity ranges from 500 lbs to 5000 lbs depending on the size and material of the anchor as well as the type of concrete it is being installed into. For specific load ratings, refer to the technical data sheet for the product.
Q2: How do I install a Through Bolt Concrete Wedge Anchor?
Installation is simple: first, drill a hole into the concrete to the required diameter and depth. Insert the anchor into the hole, pass the bolt through the fixture, and tighten it. The wedge mechanism will expand and secure the anchor firmly in place.
Q3: Can these anchors be used in cracked concrete?
The Through Bolt Concrete Wedge Anchor is designed for use in solid concrete. It is generally not recommended for cracked or hollow concrete, as it may not provide the same level of holding strength. For cracked concrete, alternative anchors like epoxy or sleeve anchors might be more suitable.
Q4: Are these anchors suitable for outdoor use?
Yes, these anchors are available in corrosion-resistant finishes such as zinc plating or hot-dip galvanization, making them ideal for outdoor applications where exposure to moisture and harsh weather conditions is common.
Q5: Can the Through Bolt Concrete Wedge Anchor be removed and reused?
While the Through Bolt Concrete Wedge Anchor can be removed, it is generally recommended for permanent installations. Removal may cause slight damage to the concrete hole, reducing the anchor's ability to be reused effectively.
Q6: What is the ideal concrete strength for installing these anchors?
The Through Bolt Concrete Wedge Anchors are designed to be used in concrete with a compressive strength of at least 25 MPa (3625 psi). For higher-strength concrete, the anchors will provide even better holding power.
Q7: Are custom sizes available?
Yes, custom sizes can be produced based on specific requirements. Please contact our customer service team to discuss your project needs.
This product is the ideal choice for applications where high strength, reliability, and ease of installation are required. Whether you are working on a commercial construction site, industrial maintenance, or infrastructure project, the Through Bolt Concrete Wedge Anchor will meet your fastening needs efficiently and safely.
