Products Description

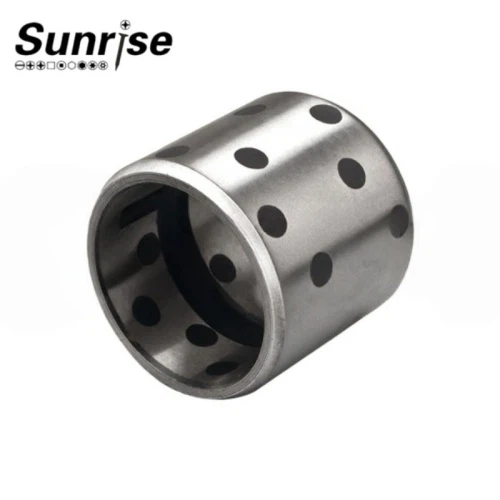

The Steel Base Inlaid Bushing is a high-performance bearing component designed to provide exceptional durability, high load capacity, and superior wear resistance. It features a steel base structure with an inlaid layer of a softer material, such as bronze or composite, to improve lubrication and reduce friction. This bushing is ideal for applications requiring reliable, long-lasting performance under heavy loads and challenging conditions.
Key Parameters:
Material: Steel base with inlaid bronze or composite layer
Tolerance: ±0.01mm
Hardness: Steel base: 200-250 HB; Inlaid material: 50-70 HB (bronze)
Load Capacity: High load-bearing capacity depending on size and material
Temperature Range: -40°C to +150°C
Lubrication: Requires external lubrication for optimal performance
Corrosion Resistance: Steel base with corrosion-resistant coatings for longer life
Products Process
Material Selection: High-quality steel is chosen for the base, while materials like bronze or composite are selected for the inlaid layer.
Stamping and Forming: The steel base is stamped or forged into the desired shape, ensuring structural integrity.
Inlay Process: The softer material is carefully inlaid into the steel base through a precise molding or bonding process.
Machining: The bushing undergoes machining to achieve the required dimensions, smooth surfaces, and precise tolerances.
Heat Treatment: The bushing is heat-treated to enhance the hardness and durability of the steel base.
Surface Finishing: The final product is polished and coated to ensure smooth operation and resist corrosion.
Products Application
Automotive: Used in engine components, suspension systems, and transmissions.
Industrial Machinery: Ideal for heavy-duty equipment such as compressors, pumps, and presses.
Construction Equipment: Commonly used in machinery like excavators, bulldozers, and loaders.
Mining: Provides support in mining equipment working under extreme conditions.
Agricultural Machinery: Used in tractors, harvesters, and other farming machinery.
FAQ
What is the advantage of the steel base inlaid bushing?
The steel base offers high strength, while the inlaid material provides enhanced wear resistance and reduces friction, making the bushing ideal for heavy-duty applications.
Can I use this bushing without lubrication?
No, the bushing requires external lubrication to ensure smooth operation and prevent excessive wear.
What is the maximum operating temperature of these bushings?
These bushings can operate effectively within a temperature range of -40°C to +150°C.
Can these bushings be customized?
Yes, we offer customization in terms of size, material for the inlaid layer, and design specifications.
What kind of maintenance is required for these bushings?
Regular lubrication and inspection for wear and tear will ensure the bushing's long-lasting performance.
This concise overview covers the key aspects of the Steel Base Inlaid Bushing. Let me know if you need additional details!
