Products Description

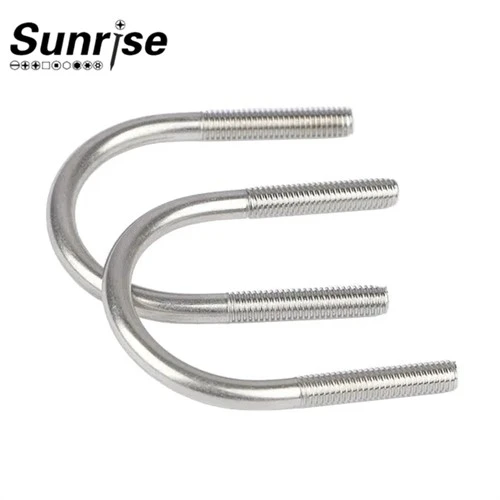

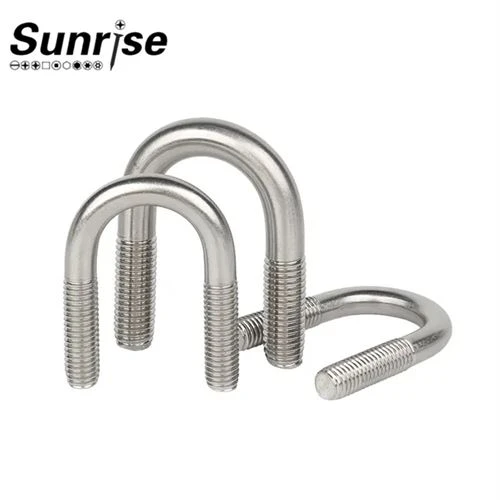

The 30-200mm Stainless Steel DIN Standard U-Shape Bolts are precision-engineered components designed for versatile fastening applications. Crafted to DIN standards, these U-bolts are available in various lengths from 30mm to 200mm, providing secure and reliable fastening solutions for a wide range of industrial and commercial uses.
Key Specifications:
Material: Stainless Steel (AISI 304 or AISI 316 options available)
Length Range: 30mm to 200mm (custom lengths available on request)
Diameter: Various diameters available, typically ranging from M6 to M24
Standard: DIN 3570
Surface Finish: Typically polished or electro-polished for enhanced corrosion resistance
Products Process
Manufactured from high-quality stainless steel, these U-shape bolts undergo a meticulous production process. Initially, stainless steel rods are cut to the required length based on customer specifications. The rods are then bent into a U-shape using precision bending machines to ensure uniformity and strength. Threads are subsequently cut using CNC (Computer Numerical Control) machines to achieve accurate threading, meeting DIN standards for thread pitch and depth.
Products Application
Piping Support: Used in construction and industrial applications for securing pipes and tubes.
Vehicle Suspension: Provides stability and support in automotive and machinery suspension systems.
Clamping: Ideal for clamping objects together securely.
Marine and Outdoor: Resistant to corrosion, suitable for marine and outdoor environments.
Custom Fabrications: Often used in custom fabrications where unique fastening solutions are required.
FAQ
Q1: What is the difference between AISI 304 and AISI 316 stainless steel?
A1: AISI 304 stainless steel offers good corrosion resistance and is suitable for general applications. AISI 316 stainless steel provides higher corrosion resistance, especially in marine and chloride environments.
Q2: Can these U-bolts be customized in terms of length and diameter?
A2: Yes, we offer customization options for length and diameter to meet specific project requirements.
Q3: Are these U-bolts suitable for outdoor use?
A3: Yes, these stainless steel U-bolts are designed to withstand outdoor conditions and are resistant to corrosion.
Q4: What load can these U-bolts support?
A4: Load capacity depends on factors such as diameter, material type, and installation conditions. Refer to DIN 3570 specifications for load ratings.
Q5: How should these U-bolts be installed to ensure optimal performance?
A5: Ensure proper tightening torque and use appropriate washers and nuts to secure the U-bolts in place according to assembly instructions and industry standards.
Conclusion: The 30-200mm Stainless Steel DIN Standard U-Shape Bolts offer robust and reliable fastening solutions for diverse applications. Crafted from high-quality stainless steel and adhering to DIN 3570 standards, these U-bolts ensure durability, corrosion resistance, and secure fastening in various industrial and commercial environments.
