Products Description

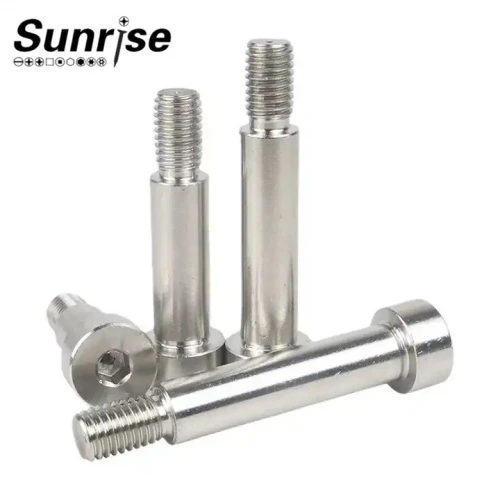

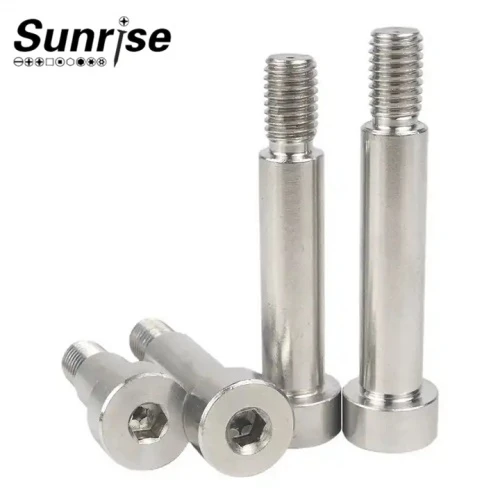

DIN 7379 Hex Socket Head Shoulder Bolts are specialized fasteners designed for precision applications. These bolts feature a hex socket drive for easy installation and a shoulder that allows for proper alignment and load distribution. Manufactured to DIN 7379 specifications, they are ideal for securing components in various mechanical and engineering applications, providing both strength and reliability.
Key Parameters:
Head Type: Hex Socket
Shoulder Diameter: Variable (as per specifications)
Diameter Range: M6 to M16 (or as specified)
Length Range: 20 mm to 100 mm (or custom lengths available)
Material: Carbon Steel or Stainless Steel (A2/A4 grade)
Finish: Zinc-plated / Black oxide / Natural finish
Thread Type: Metric coarse threads
Products Process
Material Selection: High-quality carbon steel or stainless steel is selected to ensure strength and durability.
Forging: The material is forged into shape, creating a solid bolt with a uniform structure.
Machining: Precision machining is carried out to create the hex socket and shoulder, ensuring accurate dimensions.
Heat Treatment: The bolts are heat-treated to enhance hardness and improve tensile strength.
Surface Finishing: A protective finish, such as zinc plating or black oxide, is applied to increase corrosion resistance.
Quality Control: Each batch undergoes strict testing for dimensional accuracy, mechanical properties, and surface quality before packaging.
Products Application
DIN 7379 Hex Socket Head Shoulder Bolts are ideal for:
Machine Assembly: Used to secure components within machinery, ensuring stability and alignment.
Automotive Industry: Perfect for fastening engine parts and chassis components.
Furniture Manufacturing: Employed in the assembly of adjustable furniture, providing reliable and secure connections.
Robotics: Commonly used in robotic assemblies where precise alignment is crucial.
General Engineering: Suitable for various engineering applications requiring high strength and durability.
FAQ
Q: What is the purpose of the shoulder on the bolt?
A: The shoulder provides a precise alignment point and distributes load more evenly, reducing stress on the threads.
Q: Can these bolts be used in outdoor environments?
A: Yes, especially if made from stainless steel or coated with protective finishes to resist corrosion.
Q: How are these bolts installed?
A: They can be easily installed using a hex key or socket wrench, ensuring quick and efficient assembly.
Q: What sizes are available?
A: A range of sizes is available; please consult our product catalog for specific options.
Q: Can custom lengths or finishes be provided?
A: Yes, we can accommodate custom lengths and finishes. Please reach out for more details.
For additional information or to place an order, please contact our sales team!
