Products Description

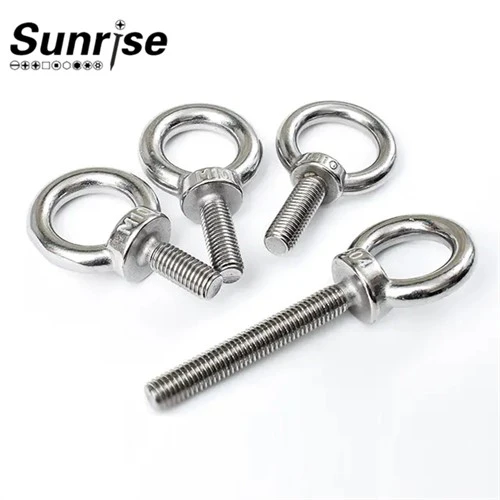

A variety of lifting and hoisting applications can be accommodated with the Stainless Steel Welded Lifting Eye Bolt. This eye bolt, which is made of grade 304 stainless steel, is ideal for use in harsh environments like those in the marine, industrial, and other industries.
A strong and secure connection between the eye and the threaded shank is achieved by the welded construction of the eye bolt. A reliable and adaptable lifting point is provided by the eye's large enough to accommodate a variety of hooks and slings.
To meet different project requirements, the eye bolt can be ordered in a variety of sizes.
Key Specifications:
Material: Grade 304 Stainless Steel
Sizes Available: Typically ranges from M6 to M24
Working Load Limit (WLL) Range: 250 lbs to 1,800 lbs
Products Process
The manufacturing process for the Stainless Steel Welded Lifting Eye Bolt consists of several steps. The desired shape is created by cutting and shaping the stainless steel raw material. A strong and long-lasting connection is then created by combining the eye and threaded shank.
The eye bolts go through a number of quality control checks after welding to make sure they meet the required dimensions and performance requirements. Finally, the distribution of the eye bolts is finished and packaged.
Products Application
The Stainless Steel Welded Lifting Eye Bolt is adaptable and adaptable to a variety of applications, including:
The marine and coastal environments
Industrial tools and tools
Building and construction projects
logistics and material handling
applications that are outdoors and exposed to the elements
FAQ
Q1: What distinguishes a collared eye bolt from a welded eye bolt?
A1: The method of attachment to the load is what makes it unique. Colled eye bolts have a large collar that can be screwed down onto a machined surface to provide angular support, while collared eye bolts have an eye that is permanently attached to the threaded shank. Colled eye bolts are typically used for axial( straight) loads, whereas collared eye bolts are more effective at angled loads.
Q2: Can trunnion( side) loading be performed with the eye bolts?
A2: Yes, but the working load cap for trunnion( side) loading must be lowered to 0. 25% of the marked capacity. To ensure proper load distribution, the eye must be positioned in line with the pull line.
Q3: How do I determine the correct size eye bolt for my application?
A3: The size of the eye bolt should be selected based on the weight of the load and the required working load limit. As a general rule, the working load limit of the eye bolt should be at least 5 times the weight of the load being lifted. It's important to consider any dynamic or angled loading factors as well.
