Products Description

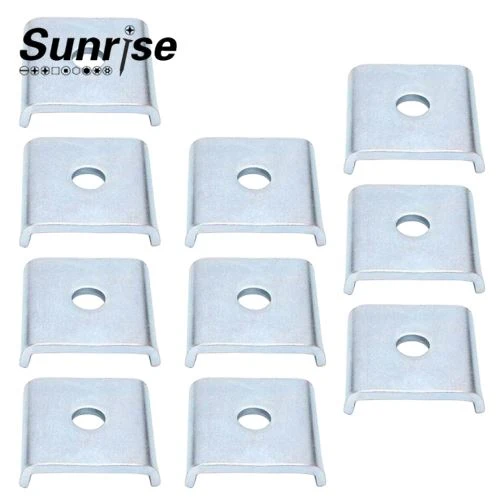

The Channel Saddle Washer is an essential mechanical component designed to provide stability and support in various industrial applications. These washers are typically used to enhance the performance and longevity of bolted connections, primarily in steel and construction industries, by distributing the load evenly across the surface. They are specifically crafted to fit onto the saddle of a channel or beam, preventing any potential wear, corrosion, or damage that may occur during the tightening process. The design ensures optimal grip and load-bearing capacity, reducing the risk of loose connections or component failure.
Technical Parameters:
Material Options: Carbon Steel, Stainless Steel (304, 316), Alloy Steel
Thickness: Customizable based on application, ranging from 1mm to 10mm
Outer Diameter: Typically ranges from 20mm to 120mm (custom sizes available)
Inner Diameter: Varies according to the bolt size being used, typically from 5mm to 80mm
Load Capacity: Designed to withstand loads of up to several tons depending on the material and thickness
Surface Treatment: Galvanized, Passivated, Powder Coated, or Black Oxide
Certifications: ISO 9001, ASTM A536, and other industry-specific standards
Products Process
The production of Channel Saddle Washers involves a precise and detailed manufacturing process to ensure their quality and functionality. The main steps are:
Material Selection: High-quality carbon steel, stainless steel, or alloy materials are chosen based on the application's requirements for durability and corrosion resistance.
Stamping & Cutting: The raw material is then cut into desired sizes using advanced stamping techniques. This step ensures precise and consistent shapes.
Forming: The washer is then formed to fit the saddle of a channel, ensuring proper curvature for an ideal fit.
Heat Treatment (if necessary): To enhance strength and corrosion resistance, the washers may undergo heat treatment, depending on the material used.
Surface Treatment: Depending on the end-use, surface treatments like galvanization, passivation, or coating may be applied to further enhance durability and corrosion resistance.
Quality Control: Each washer undergoes strict quality testing, including visual inspection, size verification, and tensile strength tests, to meet industry standards.
Products Application
The Channel Saddle Washer is highly versatile and used in a wide range of industrial applications, including:
Construction and Structural Engineering: Used in bolted connections for beams, channels, and girders, providing stability and reducing wear.
Steel and Metal Fabrication: Ideal for heavy-duty equipment where secure, long-lasting connections are critical.
Bridge Building: Used in connecting large structural components with high load-bearing requirements.
Mechanical Assemblies: Employed in various mechanical systems where vibration damping and load distribution are required.
Railroads and Transport Industry: Installed in rail track systems and vehicle frameworks to improve connection integrity.
FAQ
What materials are Channel Saddle Washers made from?
Channel Saddle Washers can be made from carbon steel, stainless steel (304 or 316), or alloy steel depending on the application's needs, such as corrosion resistance and strength.
How do I choose the right size washer for my application?
The correct washer size depends on the bolt or fastener being used. Measure the bolt diameter and select a washer with an inner diameter that matches the bolt size, ensuring a secure fit.
Can the washers be used in outdoor or corrosive environments?
Yes, if treated with surface coatings like galvanization or passivation, Channel Saddle Washers can withstand harsh outdoor conditions, including exposure to moisture and chemicals.
What is the load capacity of the washers?
Load capacity varies depending on the material, thickness, and surface treatment of the washer. Generally, they are designed to withstand several tons of load, but specifications should be checked based on your specific requirements.
Are Channel Saddle Washers reusable?
In most cases, the washers are reusable as long as they are not damaged or excessively worn. However, for critical applications, it is recommended to inspect them for signs of wear before reusing them.
Can custom sizes be ordered?
Yes, custom sizes can be ordered to fit specific requirements. We offer a range of customizable options based on diameter, thickness, and material.
What is the typical lead time for ordering Channel Saddle Washers?
Lead times vary based on quantity and customization requirements. Typically, standard orders are processed within 7-14 days. For customized orders, it may take 3-4 weeks.
Do you provide certifications for the washers?
Yes, we provide certificates of compliance with industry standards such as ISO 9001, ASTM A536, and other applicable certifications based on the material and application.
By offering a high degree of reliability and versatility, the Channel Saddle Washer is an indispensable part of any high-strength bolted connection, making it a valuable choice for a wide range of industrial applications.
