Products Description

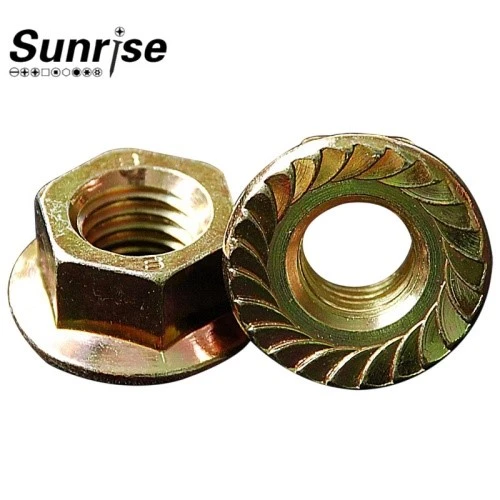

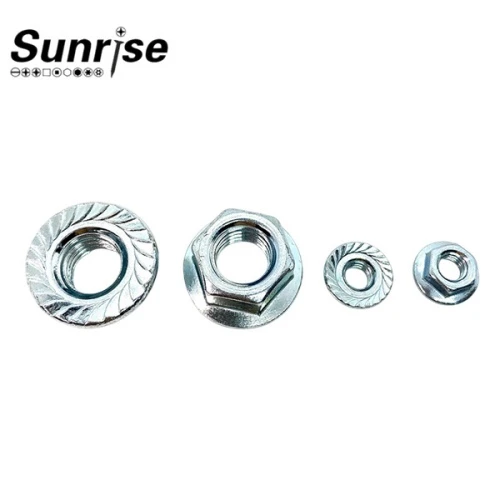

A high-quality fastener made of the DIN 6923 Hex Serrated Flange Nut is recommended for applications that require a secure and vibration-resistant connection. A larger bearing surface and a lessening of the load caused by vibration or dynamic forces are provided by this type of nut, which has a hexagonal shape and an integrated serrated flange. The serrated flange's tightening action increases the system's overall dependability.
These nuts are frequently employed in high-performance applications like automotive, machinery, construction, and other safety and stability-critical sectors. To create a secure fastening solution, they are frequently combined with bolts, screws, or threaded rods.
Key Parameters:
Standard: DIN 6923
Material Options: Steel (zinc-plated, galvanized), Stainless Steel (A2, A4), or Brass
Thread Size: M6, M8, M10, M12, M16, M20, M24, M30, M36 (custom sizes available)
Grade: 8, 10, 12, or custom grades for specific applications
Finish: Zinc Plated, Hot-Dip Galvanized, Stainless Steel, or Black Oxide
Flange Diameter: As per DIN 6923 standard
Height: Varies depending on the size (as per DIN 6923)
Serration Type: Radial serration designed to provide anti-loosening properties
Products Process
Material Selection: Based on the intended application, the selection of high-quality steel, stainless steel, or other suitable alloys is the first step in the production of DIN 6923 Hex Serrated Flange Nuts. The material was chosen based on its strength, durability, and corrosion resistance.
Forging: A raw billet of metal is typically forged or cold-formed to improve material malleability.
Serration Formation: The serrated flange is created using a precision die while it is being manufactured. The mating material's surface is carved into by the serrations, creating friction and resistance to loosening.
Threading: To ensure a smooth and consistent fit with the corresponding bolt or threaded component, the threads are precision cut or rolled onto the nut.
Heat Treatment: After being formed, the nuts are heat-treated( if necessary) to increase their strength, hardness, and wear resistance, ensuring that they adhere to industry standards for performance and life.
Finishing and Coating: To increase their corrosion resistance and provide a smooth finish, nuts may go through additional processes, such as plating( such as zinc or cadmium coating), depending on the material.
Quality Control: The finished nuts are subject to rigorous testing to meet DIN 6923 requirements for dimensional accuracy, material strength, and durability.
Products Application
Automotive: These nuts are frequently employed in automotive repairs and assembly, particularly in vibration-sensitive components like suspension and exhaust systems.
Machinery: Machinery includes motors, compressors, and construction machinery, as well as common in other types of machinery and equipment that requires high torque and vibration resistance.
Construction: Suitable for applications in structural steel, bridges, and other heavy constructions where secure fastening is crucial for safety and longevity.
Electrical and Aerospace: Used in specialized applications requiring secure fastening in challenging environments, such as aerospace components and electrical equipment.
General Industrial Use: Ideally suited for manufacturing and general industrial applications where vibration or heavy loads are present and require dependable and long-lasting fastening.
FAQ
1. What benefits do hex serrated flange nuts have over a regular hex nut?
The serrated flange offers an additional locking mechanism that resists vibrational loosening, making it ideal for use with dynamic forces. This is especially useful in industries like construction, machinery, and automotive, where secure connections are essential.
2. Reusable Hex Serrated Flange Nuts are permitted under DIN 6923?
If these nuts are in good condition and free of excessive wear or damage, they can be reused. However, after each use, it's advised to check for wear or deformation before using them.
3. Any material can be used with DIN 6923 nuts with bolts.
It's important to match the material and grade of the nut with the bolt or screw to ensure compatibility and maximum performance, even though these nuts are designed to work with a variety of materials. For instance, adding stainless steel bolts and nuts can increase corrosion resistance.
4. What torque requirements apply to DIN 6923 Hex Serrated Flange Nuts?
The mating bolt's size and material grade determine the required torque. For each application, it is crucial to consult the torque specifications and adhere to manufacturer's recommendations to ensure proper tightening.
5. How do I determine the correct size of DIN 6923 Hex Serrated Flange Nut?
To determine the correct size, you must match the nut with the corresponding bolt or screw. The nominal diameter (e.g., M10, M12) and thread pitch (e.g., 1.0 mm for M10) should match the bolt to ensure proper fit and performance.
6. Can DIN 6923 Hex Serrated Flange Nuts be used in outdoor or marine environments?
Yes, if made from materials such as stainless steel or coated with anti-corrosion finishes like zinc plating, these nuts are suitable for outdoor or marine environments. However, for highly corrosive environments, a higher grade of stainless steel (e.g., A4) may be necessary.
