Products Description

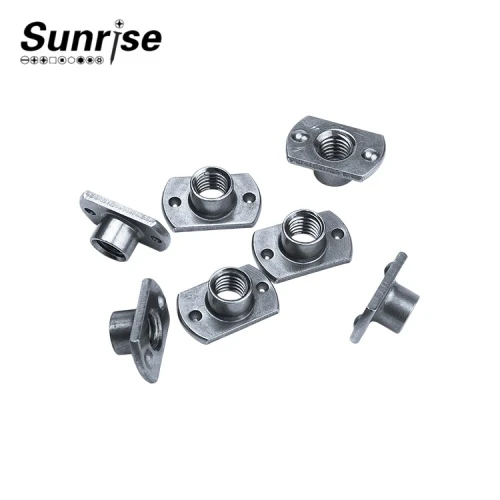

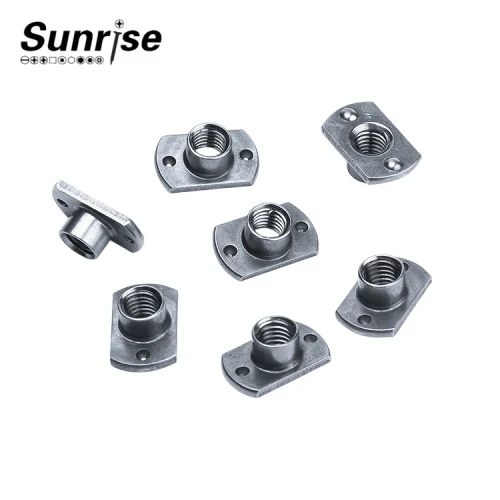

The Tab Base 2 Projection Weld Nut is a high-quality, precision-engineered fastener designed for use in welding applications where strong, reliable threaded connections are needed. This nut features a tab base design with two projection points, which allow for secure, efficient attachment to a workpiece via projection welding. The unique projections are designed to create strong weld points, ensuring that the nut is firmly anchored to the substrate, providing a stable and durable connection for bolts and screws.
The Tab Base 2 Projection Weld Nut is widely used in automotive, electronics, and machinery manufacturing, offering high resistance to vibration, heavy loads, and thermal stress. It is especially suitable for industries requiring fast, efficient welding of threaded components without the need for additional hardware.
Technical Parameters:
Material: Low Carbon Steel, Stainless Steel, Alloy Steel (Customized per application)
Thread Type: Metric, UNC, UNF, or Custom Thread Profiles
Tab Size: Varies (Customized to meet customer requirements)
Projection Design: Two projections for optimal weld bonding
Finish Options: Zinc Plating, Passivated, or Custom Coatings (for corrosion resistance)
Weld Strength: Welds are designed for high strength, able to withstand high stress and vibration
Tensile Strength: 500 MPa to 800 MPa (depending on material and heat treatment)
Hardness: HRC 25-35 (depending on material and treatment)
Operating Temperature: -40°C to 250°C (depends on material choice)
Size Range: M6 to M30 (Custom sizes available upon request)
Load Capacity: Suitable for medium to heavy-duty applications requiring strong, secure connections
Products Process
Material Selection: The manufacturing process begins with selecting high-strength materials such as low-carbon steel, stainless steel, or other alloy steels. These materials are chosen for their weldability, durability, and strength in mechanical applications.
Tab and Projection Forming: Using precision stamping or die-casting techniques, the base of the nut is shaped with a tab and two projections. The projections are designed to provide an excellent surface area for the welding process, ensuring strong adhesion during welding.
Thread Rolling: The internal threads of the nut are formed through a cold-rolling process, which strengthens the threads and ensures high tensile strength, increasing the durability of the nut once it is welded into place.
Welding Preparation: The tab base and projections are prepared for the welding process by cleaning and ensuring proper alignment for efficient heat transfer. This step is crucial for creating a solid, uniform weld joint.
Projection Welding: The nut is then welded onto the workpiece using a projection welding machine. The projections on the tab base create localized heat, which melts the material and forms a strong weld bond, ensuring that the nut is securely attached to the substrate.
Heat Treatment: After welding, the nut may undergo a heat treatment process to relieve any welding stresses and ensure the nut retains its strength and hardness. The treatment may also enhance the material's resistance to wear and corrosion.
Surface Treatment: Depending on the application, the finished weld nut can undergo surface treatments like zinc plating, passivation, or coating to improve its corrosion resistance and enhance its durability in harsh environments.
Quality Control: The final product is subject to strict quality control checks, including dimensional accuracy, weld strength tests, and thread inspections. Only products that meet stringent standards for durability and functionality are shipped.
Products Application
The Tab Base 2 Projection Weld Nut is primarily used in industrial applications where fast, secure, and vibration-resistant threaded connections are needed. Common applications include:
Automotive Industry: Used for attaching components such as body panels, brackets, or structural parts in automotive manufacturing. The weld nut provides a secure threaded point for bolts in high-vibration environments.
Heavy Machinery and Equipment: Employed in machinery where strong, durable fasteners are needed to withstand heavy loads and frequent mechanical stress.
Electronics and Electrical Components: Used in electrical cabinets or machinery to provide secure threaded mounting points for electronic components or connections.
Construction and Metal Fabrication: Ideal for use in metal frames, panels, or structures where threaded connections are needed without the need for separate nuts or bolts.
Furniture and Appliance Manufacturing: Frequently used in the production of metal-based furniture or appliances to secure various parts or components.
FAQ
Q1: What is the advantage of using a Tab Base 2 Projection Weld Nut?
A1: The tab base design with two projections ensures secure attachment through welding, providing a strong bond and stable threaded connection without the need for additional fasteners. This design also reduces installation time and labor costs.
Q2: Can the Tab Base 2 Projection Weld Nut be used in high-vibration environments?
A2: Yes, the Tab Base 2 Projection Weld Nut is designed to be vibration-resistant, making it ideal for automotive and machinery applications where frequent vibration could otherwise cause fasteners to loosen or fail.
Q3: What materials can be used with the Tab Base 2 Projection Weld Nut?
A3: The nut can be used with various materials including steel, aluminum, and certain alloys. The choice of material depends on the intended application and environmental conditions.
Q4: How do I install a Tab Base 2 Projection Weld Nut?
A4: Installation is done through projection welding, where the nut is attached directly to the workpiece using localized heat from the projections on the nut's base. This creates a strong weld bond between the nut and the substrate.
Q5: Are there size or thread variations available for the Tab Base 2 Projection Weld Nut?
A5: Yes, the Tab Base 2 Projection Weld Nut can be customized in size, thread type (Metric, UNC, UNF, etc.), and base/tab dimensions to meet specific application requirements.
Q6: What is the load capacity of the Tab Base 2 Projection Weld Nut?
A6: The load capacity depends on the material and design, but these nuts are typically designed for medium to heavy-duty applications and can handle significant mechanical stress and vibration. Tensile strength is typically in the range of 500 MPa to 800 MPa.
Q7: Can the Tab Base 2 Projection Weld Nut be used in corrosive environments?
A7: Yes, for corrosive environments, the nut can be made from stainless steel or be coated with protective finishes like zinc plating or passivation to enhance its resistance to corrosion and environmental wear.
Q8: How does the Tab Base 2 Projection Weld Nut improve the efficiency of the manufacturing process?
A8: The Tab Base 2 Projection Weld Nut allows for direct attachment of the nut to the workpiece through welding, eliminating the need for additional nuts, bolts, or fasteners, thus streamlining the assembly process and reducing labor time.
