Products Description

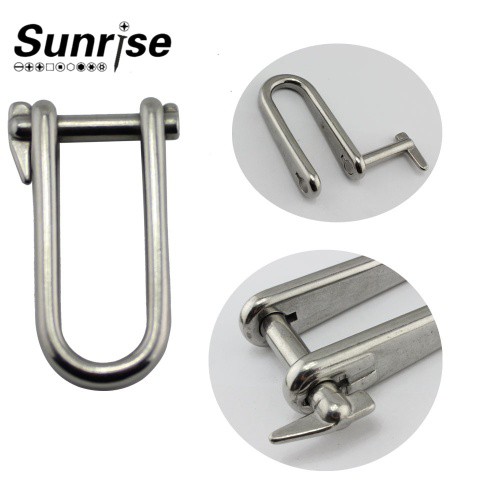

The Stainless Steel 316 Key Pin Shackle is a heavy-duty, corrosion-resistant U-shaped connector designed for secure load handling in marine, industrial, and rigging applications. Made from AISI 316 stainless steel, it features a removable key pin for easy attachment and detachment, ensuring high strength and durability in harsh environments.
Key Parameters
| Parameter | Specification |
|---|---|
| Material | AISI 316 Stainless Steel |
| Pin Type | Removable key pin (secured with a nut or cotter pin) |
| Working Load Limit (WLL) | 0.5T – 30T (varies by size) |
| Breaking Load | 4x – 6x WLL |
| Temperature Range | -50°C to +250°C |
| Standards | DIN 82101, ASME B30.26, ISO 2415 |
Products Process
Material Selection: Premium 316 stainless steel (with 2–3% molybdenum) for superior corrosion resistance.
Forging/Casting: Hot or cold forming to shape the U-body and pin.
Machining: Precision drilling and threading for smooth pin operation.
Heat Treatment: Stress-relieving to enhance tensile strength.
Surface Finish: Polished or electropolished for reduced friction and corrosion resistance.
Quality Testing: Load testing, salt spray testing, and dimensional verification.
Products Application
Marine & Boating: Anchor connections, rigging, sailboat hardware.
Industrial Lifting: Crane slings, hoists, and load-securing systems.
Construction & Rigging: Scaffolding, safety harnesses, towing.
Outdoor & Adventure: Climbing gear, zip lines, rescue operations.
FAQ
Q1: What's the difference between a key pin shackle and a screw pin shackle?
A: A key pin shackle uses a removable pin secured by a nut or cotter pin, making it more secure for heavy loads than a screw pin shackle.
Q2: Is 316 stainless steel suitable for seawater use?
A: Yes, 316 stainless steel is highly resistant to saltwater corrosion due to its molybdenum content.
Q3: How do I determine the correct shackle size for my application?
A: Match the Working Load Limit (WLL) to your load requirements and ensure the shackle's diameter fits your rigging setup.
Q4: Can the key pin loosen over time?
A: Properly tightened nuts or cotter pins prevent loosening; regular inspection is recommended.
Q5: Are custom sizes or markings available?
A: Yes, OEM requests are accepted (minimum order may apply).
