Products Description

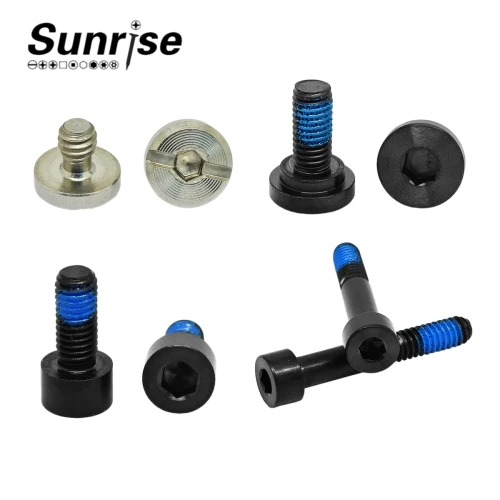

Hexagon Socket Cap Head Screw with Anti-Loose Thread Lock Nylock Machine Screws are high-performance fasteners designed to provide secure and reliable fastening in a variety of demanding applications. These screws combine the precision of a hexagon socket drive with the anti-loose benefits of a Nylock (nylon-insert) locking feature, ensuring that the screw remains tightly fastened even in high-vibration environments. The hexagon socket drive allows for easy installation using an Allen wrench or hex key, while the Nylock insert prevents the screw from loosening over time, reducing the need for frequent maintenance and re-tightening.
These screws are ideal for use in machinery, automotive, and industrial applications where a secure connection is critical, and where vibrations or frequent motion could cause other types of fasteners to fail.
Technical Parameters
Head Type: Hexagon Socket Cap Head
Thread Type: Metric Thread (M), Unified Thread (UNC)
Material: Stainless Steel (A2, A4), Carbon Steel, Alloy Steel
Nylock Insert Material: Durable Nylon (PA)
Finish: Zinc Plated, Black Oxide, Passivation, Custom Coatings
Diameter Range: M3 – M12 (or 1/8" – 1/2" for imperial sizes)
Length Range: 6mm – 100mm (or 1/4" – 4" for imperial sizes)
Grade: A2 (304 Stainless Steel), A4 (316 Stainless Steel), Custom Grades
Strength: Tensile strength up to 1000 MPa (depending on material)
Hardness: Up to HRC 40 (depending on material and heat treatment)
Compliance: Meets ISO, DIN, ASTM, or other applicable standards
Products Process
Material Selection: High-quality materials such as stainless steel, carbon steel, and alloy steel are chosen based on strength, corrosion resistance, and application requirements. Nylon for the Nylock insert is also selected for its durability and locking properties.
Cold Heading: The screw's basic shape is formed by cold-heading machines, creating the hexagon socket cap head and the body of the screw.
Thread Rolling: The threads are precisely rolled onto the screw's shaft. This process improves the strength of the threads and ensures they are durable and accurate.
Nylock Insert Installation: A nylon insert is then installed into the top portion of the screw, ensuring it will create friction against the mating surface, preventing the screw from loosening due to vibrations or mechanical stress.
Heat Treatment: To increase strength and hardness, the screws undergo heat treatment processes like quenching and tempering, which enhance their mechanical properties.
Finishing: The screws are coated with finishes such as zinc plating, black oxide, or passivation to improve their resistance to corrosion and wear, depending on the material and intended use.
Inspection and Quality Control: Each screw undergoes rigorous quality control checks, including dimensional accuracy, thread integrity, and strength testing to ensure they meet industry standards.
Packaging: After quality checks, the screws are packaged in various quantities for easy distribution and use.
Products Application
Automotive Industry: Used in engines, chassis, and suspension systems where high vibrations and movement require secure and reliable fasteners.
Machinery & Equipment: Ideal for heavy machinery, industrial equipment, and motorized systems where fasteners are exposed to vibrations that can cause loosening.
Aerospace: These screws are used in aerospace applications where safety, vibration resistance, and long-term reliability are paramount.
Construction: Used in structural applications requiring a strong and anti-loose fastening solution.
Electronics & Appliances: For electronic assemblies, providing secure fastening in cases or enclosures where vibration resistance is necessary.
Marine Industry: Excellent for outdoor and harsh environments, where rust resistance and a secure fastening are required.
FAQ
What is the benefit of the Nylock insert?
The Nylock insert provides a friction-locking feature that prevents the screw from loosening over time due to vibrations or mechanical stress. It adds an extra layer of security, making these screws ideal for high-vibration applications.
Can these screws be used in high-temperature environments?
Yes, these screws can be used in environments with elevated temperatures, provided that the materials and the Nylock insert are suitable for the specific temperature range. It's recommended to check the material specifications for high-heat applications.
What materials are these screws made from?
These screws are typically made from stainless steel, carbon steel, or alloy steel. The Nylock insert is made from durable nylon, providing excellent locking performance. Stainless steel versions are preferred for corrosion resistance.
Are these screws reusable?
Yes, these screws can generally be reused. However, the Nylock insert may lose its effectiveness after multiple uses, especially if the screw is repeatedly tightened and loosened. For best performance, it's recommended to replace the screw after a few uses.
What size should I choose for my application?
The choice of size depends on the specific requirements of your project, such as the load-bearing capacity and the material of the components being fastened. Always check the project specifications and consider factors like diameter, length, and thread type when selecting the correct size.
Do these screws require special tools for installation?
No special tools are required, but an Allen wrench (hex key) is necessary to drive the hexagon socket cap head screws. This ensures easy installation and high torque application without damaging the screw head.
Can these screws be used outdoors or in corrosive environments?
Yes, these screws are available in corrosion-resistant materials like stainless steel (A2, A4) or with protective coatings like zinc plating, making them suitable for outdoor and corrosive environments such as marine or industrial settings.
How do the Nylock screws compare to traditional screws?
The Nylock screws have the added benefit of vibration resistance due to the nylon insert, which prevents loosening over time. In contrast, traditional screws may require frequent re-tightening, especially in dynamic or high-vibration environments.
Hexagon Socket Cap Head Screws with Anti-Loose Thread Lock Nylock Machine Screws are engineered for high-performance applications that demand secure fastening, reliability, and resistance to vibration. Their robust design ensures a long-lasting and secure connection, making them the ideal choice for industries such as automotive, aerospace, and industrial machinery.
