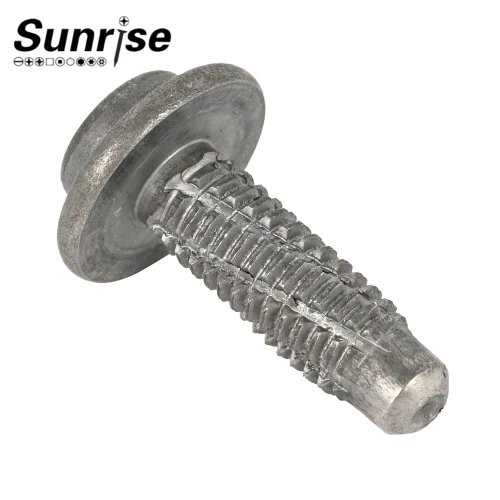

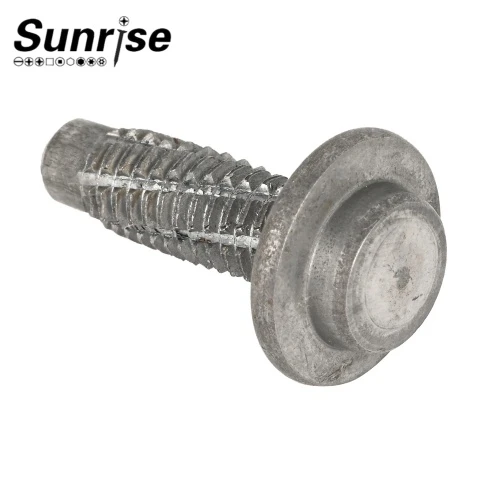

Large Flange Short Cycle Weld Stud

A specialized stud is used to weld short cycles of studs in the short cycle process. Without adding any aluminum, it has a large flange and a flat apex. This stud is made to be wewed onto thin sheets, which must be at least 1/ 8 of the thickness. The short-circuit stud welding process makes it ideal for applications where a strong bond is required on thin sheets.

Shielding Gas Parameters:

The short cycle stud welding process can be performed without the use of weld pool protection for stud diameters up to 8 mm. Use of shielding gas is advised, especially for material combinations like steel( base material), stainless steel( stud), and aluminum, to achieve high welding quality.

The following steps are involved in the short cycle stud welding process:

1, Connect the workpiece to the power source's positive pole.

2, Insert the Stud Welding Gun's Chuck with the Large Flange Short Cycle Weld Stud.

3, Use a ceramic ferrule as support, or place the stud directly onto the workpiece.

4, Start the welding process by lifting the stud and creating a low current auxiliary arc( pilot arc).

5, Use high amperage that is appropriate for the stud diameter to create the main arc between the stud's tip and the workpiece.

6, A melting zone is created when the stud and the opposing workpiece partially melt.

7, Move the stud in the direction of the workpiece, joining the melting zones tightly, after the weld time has been adjusted.

8, The melting zone solidifies and cools down after the power source is turned off.

The Short Cycle Large Flange Weld Stud is frequently employed in a variety of applications, including:

Used to fasten conduits and trims, especially when using Christmas tree studs.

Materials with thin gauges: A good choice for welding thin sheets where the substrate material would arc more slowly.

Q1: Short Cycle Weld Stud: What Is It?

A1: short cycle weld stud fastener is made of special weld technology to be quickly and simply installed. These studs are ideal for use in industries like automotive assembly and construction where time and efficiency are crucial.

Q2: Why Does This Stud's Large Flange Have A Flange?

A2: This stud's Large Flange has more surface area, which increases the fastener's capacity for holding loads. In applications where a lot of load capacity is required, this is the ideal solution.

Q3: Are these studs made of premium materials?

A3: Yes, this Stud is made of the highest-quality stainless steel materials, which are built to ensure long-lasting performance and durability.
