Products Description

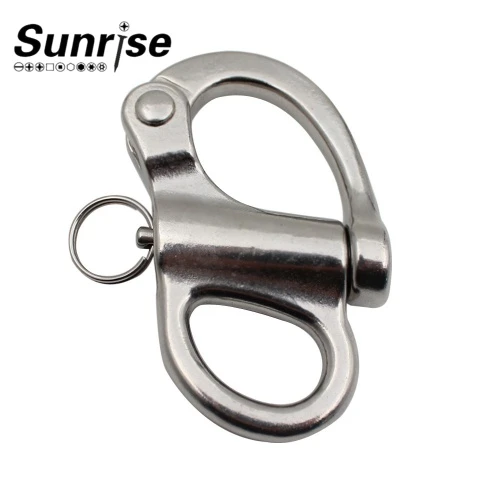

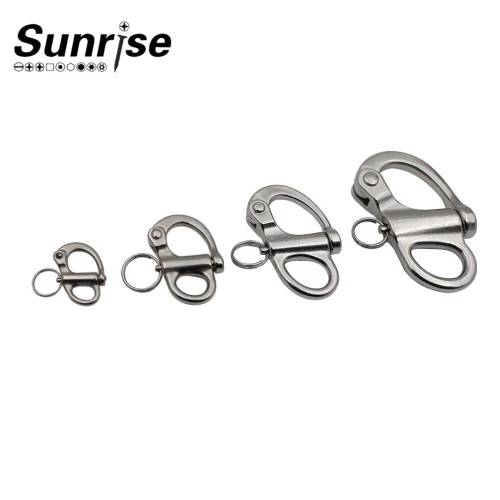

The Stainless Steel 316 Fixed Spring Shackle is a high-performance marine-grade hardware component designed for secure and durable load-bearing applications. Its corrosion-resistant 316 stainless steel construction ensures reliability in harsh environments, including saltwater exposure. The fixed spring design provides a robust connection point for rigging, lifting, or towing, making it ideal for marine, industrial, and outdoor use.
Key Features:
| Parameter | Specification |
| Material | AISI 316 Stainless Steel |
| Finish | Polished/Electropolished |
| Working Load Limit | 0.5T – 20T (varies by size) |
| Breaking Load | 2x – 4x WLL |
| Temperature Range | -50°C to +200°C |
| Standards | ISO 2415, DIN 685, or customer-specified |
Products Process
Material Selection: Premium 316 stainless steel (with 2–3% molybdenum) for superior corrosion resistance.
Forging/Pressing: Hot or cold forming to shape the shackle body and spring mechanism.
Machining: Precision drilling and threading for smooth pin operation.
Heat Treatment: Stress-relieving to enhance strength and durability.
Surface Finish: Polished or electropolished to reduce friction and improve aesthetics.
Quality Testing: Load testing, salt spray testing, and dimensional checks.
Products Application
Marine: Rigging, sailboat hardware, anchor connections.
Industrial: Lifting slings, crane systems, safety equipment.
Outdoor: Climbing gear, zip lines, forestry applications.
General Use: Securing cargo, trailers, or construction loads.
FAQ
Q1: Why choose 316 over 304 stainless steel?
A: 316 offers better corrosion resistance, especially in saltwater, due to added molybdenum.
Q2: Can the spring mechanism be replaced?
A: No, the spring is fixed and integral to the shackle's design for permanent security.
Q3: How do I maintain the shackle?
A: Rinse with fresh water after salt exposure; inspect regularly for wear or deformation.
Q4: Is galvanic corrosion a concern?
A: Avoid direct contact with dissimilar metals (e.g., aluminum) in wet environments.
Q5: Are custom sizes available?
A: Yes, contact us for OEM specifications (min. order may apply).
