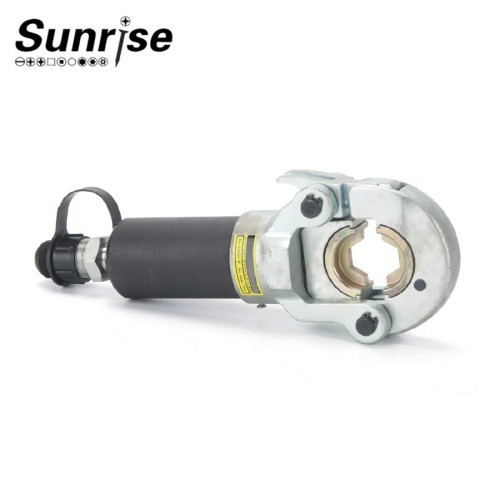

Hydraulic Crimping Heads

Characteristics:

Rotatable, compact C head for use in tight spaces.

R2 3/8 male coupler and dust cap are included.

For hydraulic pumps operating at 700 bar.

steel storage box

Characteristics:

requires a 700 bar rated oil pressure from an external hydraulic pump.

Single-action cylinder with spring return.

A standard accessory is a detachable ground stand.

Large handle makes it simple to transport.

For easier connector positioning, removable die cap.

For hoist work, a solid metal loop is installed at the base.

The compression head was created to serve as a transportable tool for the installation of compression sleeves and terminals for transmission construction.

maintenance tasks

Characteristics:

100 Tons of Double-Action

For safe working, sturdy construction.

Simple design and maintenance are achieved.

The hydraulic retracting period is one-third of the spring return.

The operator is able to quickly insert and remove the connector thanks to the removable die cap design.

Easily repositionable and carried with functional handles.

requires a hydraulic pump with two external functions. with a 700 bar rated oil pressure.

Designed to be used with transmission maintenance and construction projects as a portable tool.

comes packaged in a sturdy wooden box.

Characteristics:

200 Tons of Double-Action

Crimping Range:

Copper sleeves up to 86 mm O.D.

Aluminum sleeve up to 100 mm O.D.

Steel sleeves up to 50 mm O.D.

For safe working, sturdy construction.

Simple design and maintenance are achieved.

●Ram retracts hydraulically, the retracting time is 1/3 of spring return.
●Removable die cap design helps operator an easy insertion and removable of the connector.
●Functional handles for easy carrying and repositioning.
●Wide crimping area reduces crimping cycles and minimizes curving and tensioning of conductors.
●Requires an external double acting hydraulic pump with rated oil pressure of 700 bar.
●Designed as a portable tool for installing compression sleeves and terminals for transmission construction and maintenance work.
●Comes delivered in sturdy wooden box.

Characteristics:

●Flip-top crimping head, rotatable.
●Large crimping area up to 300 mm2.
●Supplied with R2 3/8 male coupler and dust cap.
●For connecting to hydraulic pumps with 700 bar operating pressure.
●Steel storage box.

Characteristics:

●H head for deep groove crimping.
●Large crimping area up to 400 mm2.
●Supplied with R2 3/8 male coupler and dust cap.
●For connecting to hydraulic pumps with 700 bar operating pressure.
●Steel storage box.

Characteristics:

●Wide open C crimping head, rotatable.
●Large crimping area up to 400 mm2.
●Supplied with R2 3/8 male coupler and dust cap.
●For connecting to hydraulic pumps with 700 bar operating pressure.
●Steel storage box.

Characteristics:

For use in indoor and outdoor power distribution and
transmission projects, splicing fittings, overhead and
underground conductors.

●Yoke-type head design is solid and durable.
●Convenient handle makes handling and hoisting easier.
●Positive die locking mechanism holds dies firmly in place.
●Supplied with R2 3/8 male coupler and dust cap.
●Requires an external hydraulic pump with rated oil pressure of 700 bar.
●Single action cylinder with spring return.
