Low Profile Hydraulic Torque Wrench

Parameter Table Product Description A high-quality locking nut with a nylon insert that keeps it from loosening while in use is the DIN 985 Nylon Insert Lock Nut. This lock nut is extremely dependable and long-lasting, and it is perfectly made to fit for a variety of industrial applications....

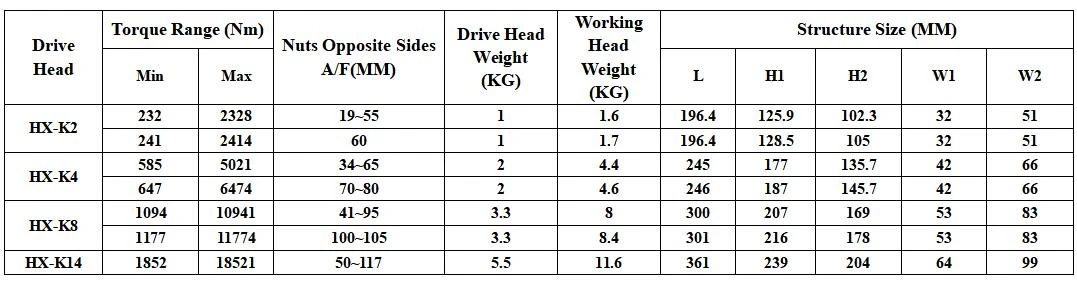

Products Parameters:

QQ20240807125759

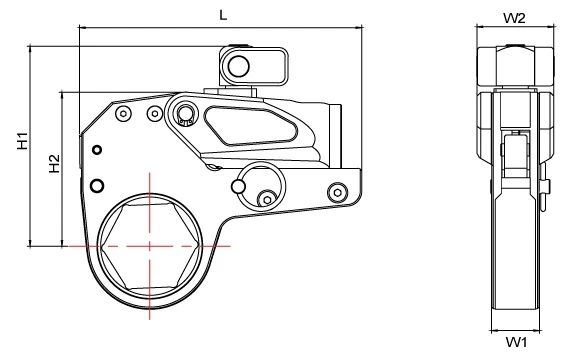

Products Characteristics

1449281481262917

700 bar maximum working pressure

Low profile design is suitable for areas with limited access.

Aluminum-titanium alloy drive unit

Hexagon cassette that can be changed

3% repeatability

Maximum operating pressure of 700 bar.

4 different 230 Nm to 18 Nm models.

Specifically designed for high torque applications that need to tighten and loosen.

quick release quick-release uni couplings that rotate 360° 180 degrees.

smallest wall thickness and maximum torque

There are a variety of cassettes, adapters, and reducers.

Light body, aluminum-titanium alloy, and durable structure.

Suitable for continuous operation under the highest pressure.

Overpressure is prevented by the pressure relief valve.
