Products Description

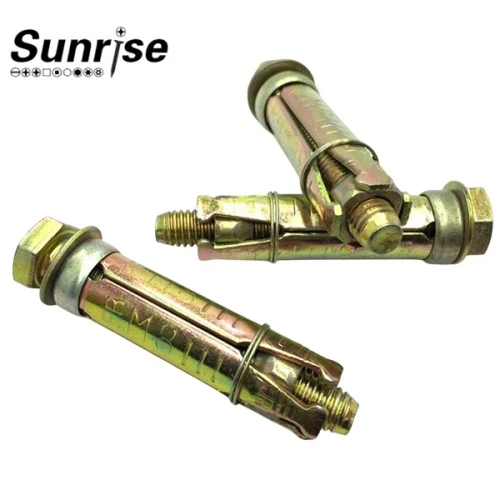

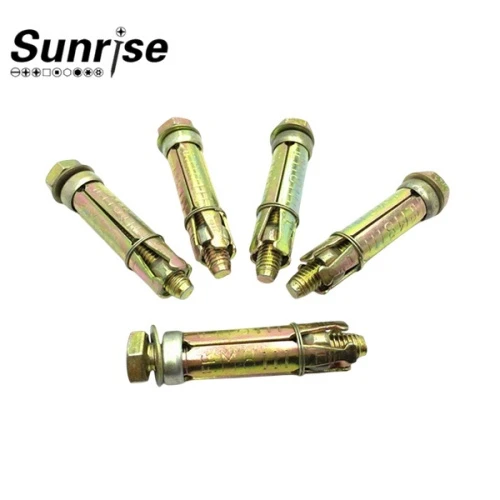

The Heavy Duty Shield Expansion Anchor 4 Pieces Fix Bolt is a high-performance fastening solution designed for secure anchoring in concrete, brick, or masonry substrates. These anchors are specifically engineered to handle heavy loads and provide robust support in demanding applications. The anchor features a shield-style expansion mechanism, which ensures a tight fit and superior holding power once installed. This heavy-duty anchor is ideal for use in construction, industrial, and structural applications where reliability and strength are critical.
Technical Parameters:
Materials: Carbon steel, stainless steel, or zinc-plated steel.
Anchor Lengths: Typically available in lengths ranging from 2.5 inches (64 mm) to 6 inches (152 mm).
Bolt Diameter: Ranges from 6 mm to 12 mm.
Tensile Strength: The tensile strength varies from 5 kN to 15 kN depending on the size and material.
Shear Strength: Typically ranges from 4 kN to 12 kN.
Corrosion Resistance: Available in galvanized or stainless steel options for enhanced resistance to rust and corrosion.
Hole Diameter: Designed to fit holes with diameters ranging from 8 mm to 16 mm.
Expansion Type: Shield-type expansion activated by the tightening of the bolt.
Temperature Resistance: Suitable for use in temperatures between -20°C and +80°C.
Load Capacity: Heavy-duty, designed to bear high loads, including both tensile and shear forces.
Products Process
The production of the Heavy Duty Shield Expansion Anchor 4 Pieces Fix Bolt involves several precise steps to ensure high quality, strength, and durability:
Material Selection:Premium-quality carbon steel or stainless steel is selected based on the specific requirements for strength, corrosion resistance, and environmental durability. Stainless steel variants are often chosen for applications where exposure to moisture or corrosive environments is expected.
Design and Shield Formation:The anchor's shield is designed with precision to ensure proper expansion once the bolt is inserted and tightened. The shield is crafted to tightly grip the substrate and prevent anchor movement. The design features a four-piece construction for enhanced stability and load-bearing capacity.
Bolt Manufacturing:The fix bolt is typically made from hardened steel, ensuring high tensile strength. The threads are carefully formed to provide smooth insertion and effective tightening.
Surface Treatment:To enhance the performance and lifespan of the anchors, they undergo surface treatments such as galvanization, zinc-plating, or powder coating. This treatment improves the anchor's resistance to corrosion, making it suitable for both indoor and outdoor applications.
Assembly and Testing:The components (bolt, shield, and expansion sleeve) are assembled. After assembly, the anchors are subjected to rigorous load testing to ensure they meet required specifications. Testing includes both tensile and shear strength checks to verify the anchors' reliability under different conditions.
Packaging:Once tested, the anchors are carefully packaged to prevent damage during transit. They are generally packaged in sets of four or more pieces, and the packaging ensures easy handling and proper storage.
Products Application
The Heavy Duty Shield Expansion Anchor 4 Pieces Fix Bolt is ideal for a wide range of applications where robust and secure anchoring is required. These anchors provide strong holding power for various construction, industrial, and heavy-duty applications:
Construction Projects:Securing heavy structural components like beams, steel plates, and steel frames to concrete or masonry substrates.
Industrial Equipment and Machinery:Mounting industrial equipment, machinery, and tools that require high load-bearing capacity and stability.
Building and Structural Applications:Used to anchor metal or concrete structures such as railings, support brackets, and columns to concrete or masonry surfaces.
HVAC Systems:Installing heavy-duty HVAC units, ductwork supports, and other HVAC-related components to concrete or brick walls and ceilings.
Outdoor Installations:Fixing posts, fences, and other outdoor structures in environments exposed to weather elements, especially in areas where high wind or seismic forces are a concern.
Heavy Duty Signage and Fixtures:Securing large signage, billboards, or fixed fixtures to concrete or masonry surfaces, especially in high-traffic areas or locations that experience significant vibrations.
Safety Barriers and Guardrails:Installing safety barriers, guardrails, and handrails to protect people in public areas or industrial settings.
FAQ
1. What is the Heavy Duty Shield Expansion Anchor 4 Pieces Fix Bolt?
The Heavy Duty Shield Expansion Anchor 4 Pieces Fix Bolt is a high-strength anchor designed for anchoring heavy-duty loads in concrete, brick, or masonry. It uses a shield expansion mechanism, activated by tightening the bolt, to securely fix the anchor in place.
2. How do I install the Heavy Duty Shield Expansion Anchor?
First, drill a hole into the concrete or masonry surface that matches the recommended size for the anchor. Insert the shield expansion anchor into the hole and tighten the bolt. The tightening process will expand the shield, ensuring a strong hold.
3. What is the load capacity of the Heavy Duty Shield Expansion Anchor?
The load capacity depends on the size and material of the anchor. Tensile strength ranges from 5 kN to 15 kN, while shear strength typically ranges from 4 kN to 12 kN. Always ensure the anchor selected matches the load requirements of your application.
4. Can the Heavy Duty Shield Expansion Anchor be used outdoors?
Yes, these anchors are suitable for outdoor use, especially if you choose the stainless steel or galvanized steel versions, which offer enhanced corrosion resistance against weather, moisture, and other harsh conditions.
5. What materials are the anchors made from?
The Heavy Duty Shield Expansion Anchor is typically made from carbon steel, stainless steel, or zinc-plated steel. The material choice depends on the environmental conditions and load requirements.
6. Can the Heavy Duty Shield Expansion Anchor be reused?
No, the anchor is designed for single-use applications. Once installed and the shield has expanded, the anchor cannot be removed and reused without compromising its strength.
7. What is the recommended hole diameter for installation?
The hole diameter should match the specifications for the anchor size. Typically, it ranges from 8 mm to 16 mm, depending on the anchor size you are using. Always follow the manufacturer's guidelines for correct hole dimensions.
8. Are these anchors suitable for use in seismic zones?
Yes, the Heavy Duty Shield Expansion Anchor is designed for use in applications requiring high load-bearing capacity and resistance to dynamic forces, such as in seismic zones or areas prone to vibrations.
9. Do I need special tools to install the Heavy Duty Shield Expansion Anchor?
No special tools are needed. A standard drill for creating the hole and a wrench to tighten the bolt are all that is required to install the anchor securely.
10. How do I choose the right size anchor?
To choose the right size, select an anchor that fits the diameter of the pre-drilled hole and can support the required load. Consider the material (concrete, masonry, or brick) and consult load rating charts to ensure proper sizing.
This detailed description of the Heavy Duty Shield Expansion Anchor 4 Pieces Fix Bolt covers essential aspects such as manufacturing, performance parameters, applications, and frequently asked questions, helping customers make informed decisions for heavy-duty anchoring applications.
