Products Description

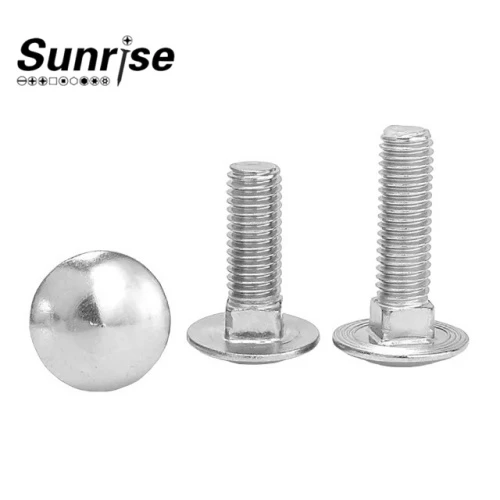

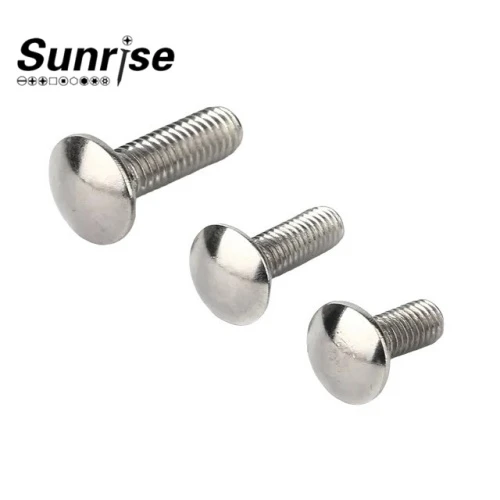

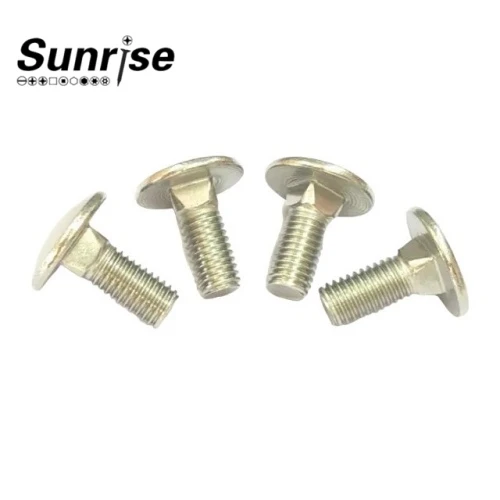

Mushroom Head Carriage Bolts, adhering to DIN 603 standards, are specialized fasteners known for their distinctive mushroom-shaped heads and square necks. These bolts are designed for applications requiring a smooth finish on the exposed side and a secure fastening against rotation, making them ideal for structural and aesthetic installations.
Key Specifications:
Material Options: Carbon steel (Grade 4.8, 8.8) or stainless steel (A2, A4).
Head Type: Mushroom head with a low-profile dome for a neat and flush finish.
Neck Type: Square neck prevents rotation during installation, ensuring secure fastening.
Thread Type: Metric coarse threads (M5 to M20) as per DIN 603 standards.
Surface Finish: Zinc plated, hot-dip galvanized, or plain finish for corrosion protection.
Sizes: Available in various lengths and diameters to accommodate different application requirements.
Products Process
Material Selection: High-quality carbon steel or stainless steel chosen for durability, strength, and corrosion resistance.
Cold Forming: Bolts are cold formed to achieve the mushroom head shape and square neck, ensuring uniformity and precise dimensions.
Thread Rolling: Threads are precisely rolled to ensure smooth assembly and strong grip without the risk of stripping or damage.
Heat Treatment: Heat treatment processes like quenching and tempering enhance the bolts' hardness and mechanical properties to meet DIN 603 specifications.
Surface Coating: Bolts are often coated with zinc plating, hot-dip galvanizing, or other finishes to enhance corrosion resistance and aesthetic appearance.
Quality Assurance: Rigorous quality checks throughout manufacturing ensure adherence to dimensional accuracy, thread integrity, and finish quality.
Products Application
Mushroom Head Carriage Bolts, DIN 603, are commonly used in:
Woodworking: Securing wooden beams, posts, and structures.
Furniture Assembly: Connecting joints and frames in furniture manufacturing.
Outdoor Structures: Installing fences, gates, and outdoor furniture.
Construction: Fastening structural components where a neat appearance is desired.
FAQ
Q: What distinguishes mushroom head carriage bolts from other types of bolts?
A: Mushroom head carriage bolts feature a low-profile dome head and a square neck under the head, designed to prevent spinning during tightening.
Q: Are these bolts suitable for outdoor applications?
A: Yes, bolts with zinc plating or hot-dip galvanizing offer excellent resistance to weather and corrosion, making them suitable for outdoor use.
Q: Can I use carriage bolts in hardwoods or softwoods?
A: Carriage bolts are suitable for both hardwoods and softwoods, providing strong and secure fastening without damaging the wood fibers.
Q: How should I determine the bolt length needed for my project?
A: Measure the total thickness of the materials being fastened and add the desired protrusion of the bolt beyond the nut to determine the appropriate length.
Q: Can carriage bolts be used in load-bearing applications?
A: Yes, when installed correctly with a washer and nut, carriage bolts can withstand significant loads and provide secure structural support.
Mushroom Head Carriage Bolts, DIN 603, combine functional reliability with a clean, finished appearance, making them an excellent choice for a wide range of woodworking, construction, and structural applications.
