Product Description

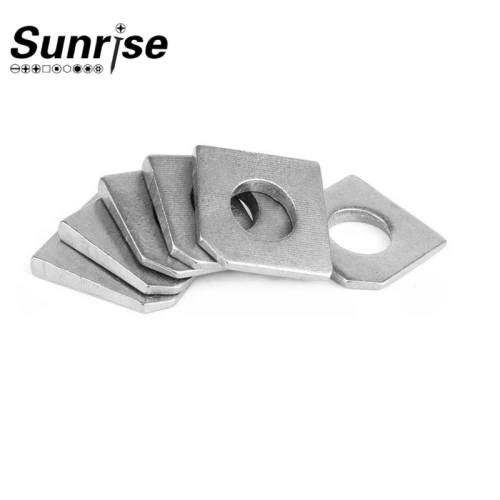

The 5 Deg Taper Washer is a specialized washer designed with a 5-degree taper angle. It is commonly used in various applications where a secure and tight fit is required. The washer is made from high-quality steel, ensuring durability and reliability. Its unique taper design allows for better load distribution and improved stability when used in conjunction with bolts or screws. The washer is available in metric sizes and is compatible with standard fasteners.
Dimensional Parameters:
The dimensional parameters of the 5 Deg Taper Washer may vary depending on the specific size and manufacturer. Here are some common parameters:
Diameter (D)
Flange Nominal (F nom)
Flange Maximum (F max)
Flange Minimum (F min)
Thickness Maximum (G max)
Thickness Minimum (G min)
Height Maximum (H max)
Height Minimum (H min)
Production Process
The manufacturing process of the 5 Deg Taper Washer involves several steps to ensure its quality and precision. Here is a general overview of the process:
Material Selection: High-quality steel is chosen for its strength and durability.
Cutting: The steel material is cut into the desired shape and size using precision cutting tools.
Forming: The cut steel is then formed into the taper shape using specialized machinery.
Heat Treatment: The washer undergoes a heat treatment process to enhance its hardness and strength.
Surface Treatment: The washer may undergo surface treatments such as zinc plating or galvanization to provide corrosion resistance.
Inspection: Each washer is thoroughly inspected to ensure it meets the required dimensional parameters and quality standards.
Applications:
The 5 Deg Taper Washer finds applications in various industries and sectors. Some common applications include:
Automotive: Used in engine components, suspension systems, and brake assemblies.
Construction: Used in structural connections, fastening of beams, and support systems.
Machinery: Used in equipment assembly, securing of parts, and alignment of components.
Aerospace: Used in aircraft assembly, engine systems, and landing gear.
FAQ
Q1: What is the purpose of a 5 Deg Taper Washer?
A1: The 5 Deg Taper Washer is used to ensure a precise and secure fit between bolted joints, flanges, and other mechanical connections.
Q2: Are there any special requirements for the installation of the 5 Deg Taper Washer?
A2: No, there are no special requirements for installing the 5 Deg Taper Washer. Simply insert it between the bolt and the surface and tighten the bolt as usual.
Q3: What is the life expectancy of a 5 Deg Taper Washer?
A3: The life expectancy of the 5 Deg Taper Washer will depend on several factors, including the application, the level of stress and strain, and the environmental conditions. However, our products are made to the highest standards and are designed to provide long-lasting and reliable performance.
