Product Description

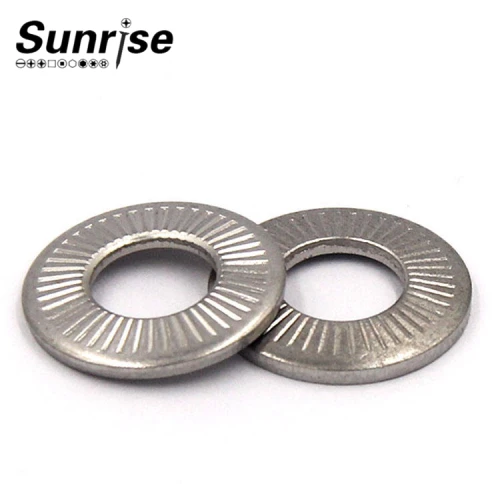

A particular kind of spring washer is the Disc Spring Conic Contact Lock Washer, also referred to as a conical washer. Conical in shape, it has axial force when deformed. W en a load is pplied the w sher's sp cia d sign enab es i to c om ress and hen ret u applied, the washer's special design enables it to compress and then return to its predeflected shape. The washer is perfect for applications where assemblies need to eliminate rattle, maintain assembly tension, absorb sporadic shock loads, or provide a controlled reaction under dynamic loads because of its conical shape.
Specifications:
Material: Steel, chrome-vanadium alloy, copper alloys, nickel-chrome, nickel-chrome-cobalt alloys

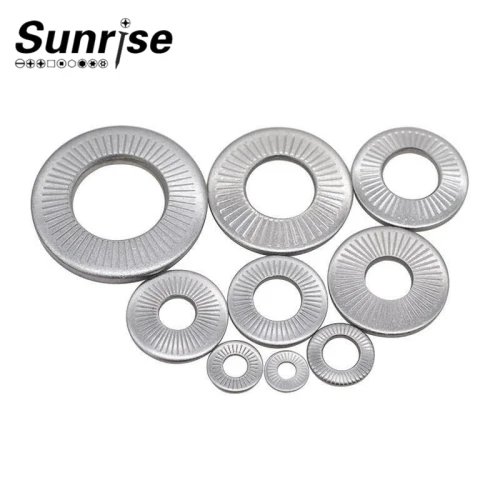

Size: Various sizes are available, depending on the specific application requirements.
Load Capacity: The washer's load capacity depends on its size and material.
Deflection: The washer's deflection characteristics can be customized based on the application needs.
Production Process
The following steps are involved in the Disc Spring Conic Contact Lock Washer manufacturing process:
Material Selection: High-quality steel or other alloys with good tensile strength and elastic limits are typically used to make washers. The material selection is based on the particular application requirements, such as high-temperature resistance or corrosion resistance.
Using specialized equipment and tools, the chosen material is shaped into a conical shape. The washer can provide axial force when deformed thanks to the precise shaping.
Heat Treatment: To improve the washer's performance overall and fatigue limit, heat treatment procedures like austempering may be used.
Surface Treatment: The washer may receive surface treatments, such as plating or coating, depending on the needs of the application in order to enhance corrosion resistance or offer other desirable qualities.
Applications:
Applications for the Disc Spring Conic Contact Lock Washer include the following systems and industries:
Automotive: Used in shock mounts, clutches and brakes for automobiles.
Machinery: Used in dampers, hoists, and machine tools.
Valves and Pumps: To keep assembly tension and reduce rattle, they are used in a variety of valves and pumps.
Electrical transformers: Components for overload protection.
Pipe Flanges: Used to stop leakage caused by fluctuating pressure and high temperatures.
FAQ
Q1: What materials are used to make this washer?
A1: The Disc Spring Conic Contact Lock Washer is made using premium-grade materials that are chosen for their durability and reliability.
Q2: Can this washer withstand high levels of vibration?
A2: Yes, this washer is designed to provide exceptional vibration resistance, making it ideal for use in applications involving high levels of vibration.
Q3: What is the conic contact design?
A3: The conic contact design is a unique feature of this washer that provides improved locking force and stability.
Q4: Where can I use this washer?
A4: This washer is ideal for use in various industrial applications, including heavy-duty machinery, automotive applications, aerospace applications, manufacturing equipment, and construction equipment.
Overall, the Disc Spring Conic Contact Lock Washer is an excellent locking washer that is designed to provide exceptional performance and reliability in various industrial applications. With its unique conic contact design and premium-grade materials, this washer is sure to provide reliable service for years to come.
