Product Description

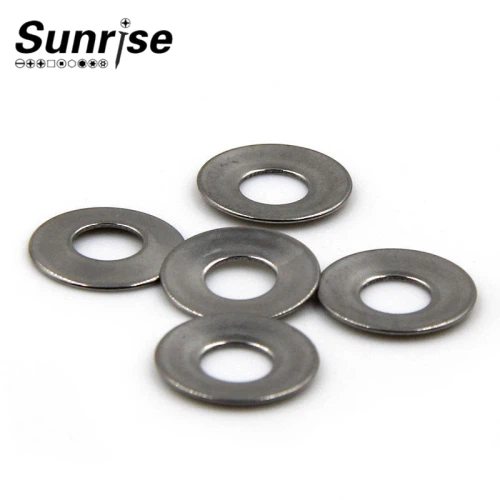

A conical ring element with elastic properties is the DIN 2093 disc spring washer, also referred to as a belleville washer. Both static and dynamic applications can use it because it can withstand axial compression loads. The quality and performance of these disc spring washers are guaranteed by the fact that they are made in accordance with the DIN 2093 standard's specifications.
Specifications:
The DIN 2093 disc spring washers are available in various sizes and specifications to meet different application requirements. Some key specifications include:
Outside Diameter (OD): The outer diameter of the disc spring washer.
Inside Diameter (ID): The inner diameter of the central hole.
Thickness (t): The thickness of the washer material.
Load Capacity: The maximum load that the washer can withstand.
Deflection: The maximum displacement or bending that the washer can undergo while still maintaining its elastic properties.
Production Process
Numerous steps are taken during the production of DIN 2093 disc spring washers to guarantee their accuracy and dependability. The following steps typically make up the specific process, which may vary depending on the manufacturer:
Material Selection: High-quality spring steel or stainless steel, which offers excellent strength and durability, is typically used to make disc spring washers.
Stamping: A conical ring with a central hole is created by stamping the chosen material into the desired shape.
Heat Treatment: To improve the mechanical properties of the stamped disc spring washers, such as hardness and elasticity, a heat treatment process is used. The washers can withstand the necessary loads and keep their shape over time thanks to this step.
Surface Treatment: To increase corrosion resistance and improve the appearance of disc spring washers, surface treatments like coating or plating may be used.
Applications:
DIN 2093 disc spring washers find applications in a wide range of industries and systems, including:
Automotive: Used in suspension systems, clutch assemblies, and braking systems.
Aerospace: Used in aircraft landing gear, engine mounts, and control systems.
Industrial Machinery: Used in heavy machinery, valves, and pumps.
Electrical Equipment: Used in electrical connectors, switches, and circuit breakers.
Construction: Used in structural components, bridges, and buildings.
FAQ
Q1: What is the maximum load capacity of Disc Spring Washers?
A1: The maximum load capacity of Disc Spring Washers depends on their dimensions and material properties. Please consult with our technical team to get accurate information about load capacity.
Q2: Can Disc Spring Washers be customized according to customer requirements?
A2: Yes, Disc Spring Washers can be customized according to customer requirements. We offer custom solutions for various applications based on our customers' design specifications.
Q3: What is the typical lead time for Disc Spring Washer production?
A3: The lead time for Disc Spring Washer production depends on the quantity and complexity of the order. Our team will provide a specific timeline for your order upon request.
In conclusion, Disc Spring Washers are a high-performance, precision Washer used in various industrial applications. They are manufactured using advanced techniques and are designed to provide high spring force, precise load distribution, and high-temperature tolerance. With customization options and the ability to withstand dynamic loads, shock, and vibration, these washers are a valuable addition to any essential application that requires precision, reliability, and high-performance.
