Products Description

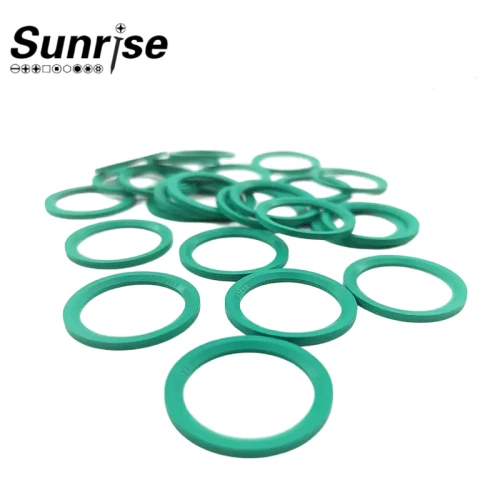

The Standard DIN 3869 Fitting Profile Seal Ring is engineered to provide exceptional sealing performance in a variety of industrial applications. Designed to meet the specifications outlined in the DIN 3869 standard, these seal rings are ideal for use in hydraulic and pneumatic fittings. They are crafted to ensure a reliable seal, preventing leaks and enhancing system efficiency. The seal rings come in a range of sizes and materials to suit different pressure and temperature conditions.
Key Parameters:
Standard: DIN 3869
Material Options:
Nitrile (NBR)
Viton (FKM)
Silicone (VMQ)
EPDM
Hardness Range: Customizable, typically 60 to 90 Shore A
Temperature Range:
Nitrile (NBR): -40°C to 120°C (-40°F to 248°F)
Viton (FKM): -20°C to 200°C (-4°F to 392°F)
Silicone (VMQ): -60°C to 250°C (-76°F to 482°F)
EPDM: -40°C to 150°C (-40°F to 302°F)
Chemical Resistance:
Nitrile (NBR): Good resistance to oils and fuels.
Viton (FKM): Excellent resistance to chemicals and high temperatures.
Silicone (VMQ): Excellent resistance to high temperatures and weathering.
EPDM: Good resistance to water and steam.
Size Range: Available in standard sizes per DIN 3869, custom sizes upon request.
Products Process
Material Selection:
Rubber Types: High-quality elastomers such as Nitrile (NBR), Viton (FKM), Silicone (VMQ), and EPDM are selected based on the required application properties.
Custom Hardness: Materials are available in various hardness levels to meet specific sealing needs.
Compounding:
Rubber compounds are mixed with various additives to achieve desired properties like hardness, flexibility, and chemical resistance. This ensures a uniform mixture and consistent product quality.
Molding:
The compounded rubber is placed into precision molds designed to form the seal rings according to DIN 3869 specifications. The molding process ensures accurate dimensions and profile consistency.
Vulcanization:
The molded seal rings undergo vulcanization, a heat treatment process that cross-links the rubber molecules. This step enhances the elasticity, strength, and durability of the seals.
Quality Control:
Each seal ring is rigorously tested for hardness, dimensions, and performance under various conditions. This ensures compliance with DIN 3869 standards and guarantees reliable performance.
Products Application
Hydraulic Systems: Ensures leak-proof sealing in hydraulic fittings and connectors.
Pneumatic Systems: Provides reliable sealing for pneumatic components and equipment.
Automotive Industry: Used in automotive hydraulic and pneumatic systems for enhanced performance.
Industrial Machinery: Suitable for sealing in various types of industrial machinery and equipment.
Aerospace: Provides reliable sealing in aerospace applications where high performance and durability are essential.
FAQ
1. What is the DIN 3869 standard?
The DIN 3869 standard defines the specifications for fitting profile seal rings used in hydraulic and pneumatic systems. It ensures that the seal rings meet specific dimensional and performance criteria for reliable sealing.
2. What materials are used for the Standard DIN 3869 Seal Rings?
Seal rings are available in various high-quality materials, including Nitrile (NBR), Viton (FKM), Silicone (VMQ), and EPDM, each offering different properties suited to specific applications.
3. What is the temperature range for these seal rings?
The temperature range depends on the material:
Nitrile (NBR): -40°C to 120°C (-40°F to 248°F)
Viton (FKM): -20°C to 200°C (-4°F to 392°F)
Silicone (VMQ): -60°C to 250°C (-76°F to 482°F)
EPDM: -40°C to 150°C (-40°F to 302°F)
4. Can these seal rings be customized for specific sizes?
Yes, we offer both standard and custom sizes to meet the specific requirements of your application.
5. How should I choose the right material for my application?
The choice of material should be based on the chemical environment, temperature conditions, and pressure requirements of your application. For example, Viton (FKM) is ideal for high temperatures and chemical resistance, while Silicone (VMQ) is suitable for extreme temperature conditions.
6. How should these seal rings be stored?
Seal rings should be stored in a cool, dry place, away from direct sunlight and sources of heat. Proper storage will help maintain their properties and extend their service life.
7. Are there any special installation instructions?
Ensure that the seal rings are properly seated in their respective grooves and that the installation surfaces are clean and free from debris. Proper installation is crucial to achieving a leak-proof seal and optimal performance.
