Product Description

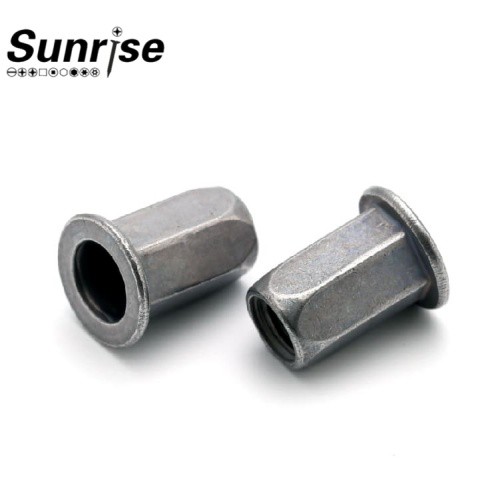

A flexible and dependable fastening option is the Full-Hexagon With Big Flange, Flat Head, Round Internal Hole, Open End Rivet Nut, also known as the FHBM series. With a large flange, flat head, round internal hole, and an open end design, this rivet nut is fully hexagonal in shape. To suit various applications, it is offered in a variety of thread sizes, hole widths, grip lengths.
Production Process:
There are several steps involved in producing the Full-Hexagon With Big Flange, Flat Head, Round Internal Hole, and Open End Rivet Nut. Material selection, cutting, forming, threading, and finishing are a few of these. Aluminum, brass, steel, and stainless steel are just a few of the materials that can be used to make rivet nuts. Zinc plating is typically used to finish them.
Specifications:
Thread Sizes: M4×0.7, M5×0.8, M6×1.0, M8×1.25, M10×1.5
Hole Sizes: 6.1mm, 7.1mm, 9.1mm, 11.1mm, 13.1mm
Lengths (L): 5.9mm, 6.9mm, 8.9mm, 10.9mm, 12.9mm
Flange Diameter (A): 10.7mm, 13.7mm, 16.0mm, 18.0mm, 21.0mm
Head Height (H): 9.0mm, 10.0mm, 13.0mm, 16.0mm, 19.0mm
Grip Range: 0.5mm-2.5mm, 0.5mm-3.0mm, 0.5mm-3.3mm, 0.5mm-3.3mm, 0.5mm-3.5mm
Applications:
The Full-Hexagon With Big Flange, Flat Head, Round Internal Hole, Open End Rivet Nut is widely used in various industries and applications. Some common applications include:
Automotive industry: Used for fastening components, panels, and brackets.
Electronics industry: Used for securing PCBs, housings, and connectors.
Furniture industry: Used for assembling furniture frames and joints.
Aerospace industry: Used for aircraft assembly and maintenance.
Construction industry: Used for structural connections and installations.
FAQ
Q1: rivet nut is what?
A1: A rivet nut is a fastener that makes threaded holes in materials devoid of threads. Without the use of welding or other conventional fastening techniques, it is intended to offer a safe and effective connection between two or more materials.
Q2: What components make up rivet nuts, exactly?
A2: A variety of materials can be used to make rivet nuts, including brass, aluminum, carbon steel, and stainless steel.
Q3: What benefit does using a Full-Hexagon with Big Flange, Flat Head, Round Internal Hole, and Open End Rivet Nut provide?
A3: Superior clamping force and improved structural stability are provided by our Full-Hexagon with Big Flange, Flat Head, Round Internal Hole, and Open End Rivet Nut. It is perfect for bolting or welding together challenging materials. In applications requiring high vibration resistance and long-term reliability, it can also be used to build strong and dependable connections.
