Products Description

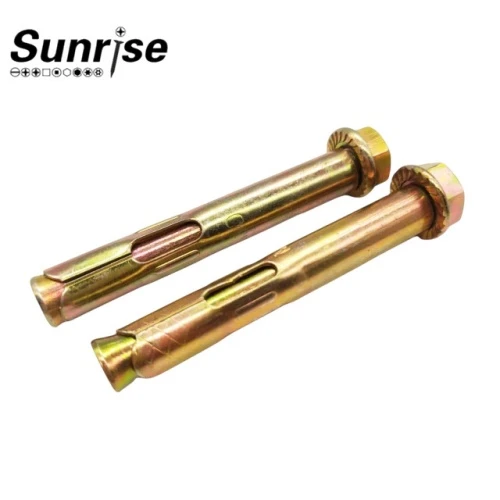

The Sleeve Anchor with Hex Flange Nut is a high-performance anchoring solution designed for reliable, heavy-duty fastening in concrete, masonry, and brick substrates. This anchor features a robust sleeve that expands upon tightening, ensuring a secure grip and providing high pull-out resistance. The Hex Flange Nut offers additional stability by distributing the load evenly across the anchor, making it ideal for securing heavy machinery, structural elements, and equipment to solid substrates.
This versatile anchor is easy to install and delivers superior performance in both indoor and outdoor applications. The combination of a durable sleeve and a hex flange nut makes it an ideal solution for situations where high-strength anchoring is required.
Key Parameters:
Material: High-strength steel or stainless steel (A2 or A4 grade)
Size: Available in a range of diameters (e.g., M8, M10, M12, M16) and lengths (typically 50mm to 150mm)
Load Capacity: Varies based on anchor size and substrate, typically ranging from 200kg to over 1000kg for larger anchors
Thread Type: Metric threads (M6, M8, M10, M12, M16, etc.)
Corrosion Resistance: Zinc-plated, galvanized, or stainless steel options (A2/A4 grade) for enhanced corrosion protection
Temperature Resistance: Operates within the temperature range of -40°C to +80°C; special variants can handle higher temperatures
Flange Nut Design: Hex flange nut for improved load distribution and enhanced stability
Surface Finish: Silver (for zinc-plated or stainless steel)
Packaging: Available in bulk or individually wrapped for ease of handling and installation
Products Process
The Sleeve Anchor with Hex Flange Nut is manufactured using advanced metalworking techniques to ensure superior strength and durability. The key stages in the production process are as follows:
Material Selection: The anchor is primarily made from high-quality steel or stainless steel (A2 or A4 grade) to ensure superior performance, strength, and corrosion resistance.
Cold Forging: The anchor components, including the bolt, sleeve, and hex flange nut, are forged through a cold forging process. This ensures high precision and superior tensile strength.
Threading & Nut Formation: The bolt is threaded, and the hex flange nut is formed using specialized dies. The nut is designed to ensure a firm grip and reliable load distribution.
Heat Treatment: The anchor components undergo heat treatment to enhance their hardness and strength, which allows them to handle heavy loads and stresses during installation and use.
Surface Coating: Depending on the intended application, the anchor may be coated with zinc or galvanized coatings for standard applications or stainless steel for environments requiring higher corrosion resistance.
Assembly: The sleeve anchor and hex flange nut are assembled together and tested for performance. The assembly process ensures that all components fit securely and function properly.
Quality Control: Each anchor is rigorously tested for dimensional accuracy, load capacity, and overall performance before it is packaged and shipped to customers.
Packaging: The final products are packed in bulk or individually, depending on customer specifications, and prepared for distribution.
Products Application
Construction & Renovation: Ideal for securing heavy machinery, equipment, and structural supports in concrete or masonry surfaces during construction projects.
Industrial Use: Perfect for anchoring large apparatus, shelving systems, or safety rails in factories, warehouses, and other industrial settings.
Outdoor Structures: Suitable for attaching fences, gates, and signage in outdoor environments, including areas with high exposure to weathering.
HVAC & Electrical Installations: Commonly used in mounting HVAC units, electrical panels, and other heavy equipment to concrete or masonry surfaces.
Bridge and Civil Engineering: Often used for high-strength anchoring in civil engineering projects, including bridges, tunnels, and roadworks.
FAQ
What is the load capacity of the Sleeve Anchor with Hex Flange Nut?
The load capacity depends on the size and type of substrate. Generally, the anchor can handle loads ranging from 200kg to over 1000kg for larger anchors. Specific load ratings are provided in the product specifications.
Can this anchor be used in outdoor applications?
Yes, the Sleeve Anchor with Hex Flange Nut is suitable for both indoor and outdoor use. Stainless steel variants are ideal for highly corrosive environments such as marine or coastal areas.
How is the anchor installed?
To install, drill a hole that matches the anchor's diameter, insert the sleeve anchor, and tighten the hex flange nut. As the nut is tightened, the sleeve expands, securing the anchor in place and providing a firm bond with the substrate.
What types of materials can this anchor be used with?
This anchor is designed for use with concrete, brick, and masonry. It provides a strong, reliable hold in both solid and hollow substrates.
Can the Sleeve Anchor with Hex Flange Nut be used in heavy-duty applications?
Yes, the anchor is specifically designed for heavy-duty applications. The sleeve expands to provide high pull-out resistance, and the hex flange nut helps distribute the load evenly across the anchor, making it suitable for demanding industrial and construction applications.
Is this anchor reusable?
No, once the sleeve anchor has been expanded and installed, it is a permanent fixture. For reuse, the substrate would need to be repaired or replaced.
What corrosion-resistant options are available?
The Sleeve Anchor with Hex Flange Nut is available in zinc-plated or galvanized finishes for standard applications, and stainless steel options (A2 or A4 grade) for environments requiring enhanced corrosion resistance, such as marine or coastal areas.
What is the benefit of the hex flange nut design?
The hex flange nut helps distribute the load evenly, improving the anchor's overall stability and holding power. This is especially important for heavy-duty applications where a secure, even grip is needed.
What sizes are available for the Sleeve Anchor with Hex Flange Nut?
The anchor is available in several sizes, with common diameters including M8, M10, M12, and M16, and lengths typically ranging from 50mm to 150mm. Custom sizes can be manufactured upon request.
By combining advanced manufacturing techniques, durable materials, and a reliable hex flange nut design, the Sleeve Anchor with Hex Flange Nut is an excellent choice for high-strength anchoring in a wide variety of applications, from construction projects to industrial installations. It ensures secure, long-lasting performance even in the most demanding environments.
